TransitVu™
A durable display engineered for low-energy, exceptional clarity, and transit stations.
TransitVu™ LCD Displays are designed to specifically address the harsh environments found within most transit venues. Train and subway platforms are subject to ever-changing temperature and humidity levels as well as airborne containments, dirt, and corrosive brake-dust.
TransitVu™ operates in these challenging environments with no problems and provides long life and maintenance free operation in areas with no direct sun exposure. In addition, a number of standard features are included to further reduce operational costs and provide intelligent monitoring through our SmartVu® Portal.
Operating at 850 nits of brightness, these displays features a fully sealed, IP66-rated structure that prevents dust, dirt, and debris infiltration while maintaining optimal performance. The structure also includes IK10 safety glass and thermal management to handle the challenges of a heavily trafficked environment.
IP66 Sealed
Dust & Water Tight

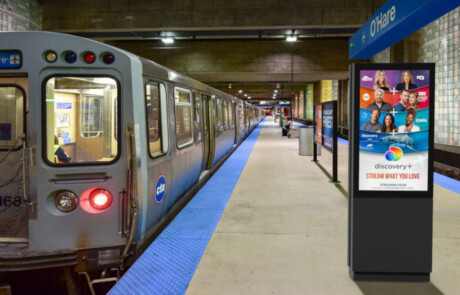

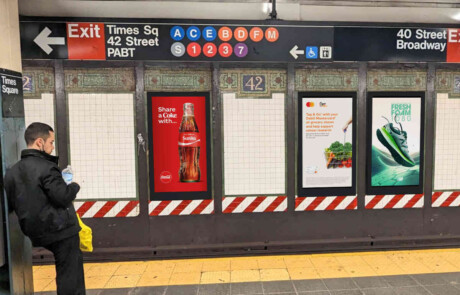

Subway
Piston Effect Resistant
Impact Resistant
Cover Glass
Maintenance Free
No Air Filters
850 nit
Brightness Level
Embedded
Media Player
Embedded
Communication
Devices
Real-Time Monitoring
via SmartVu®
Each TransitVu™ unit ships 100% complete, fully configured, and ready to install.
Single-Sided
One digital display pane
Double-Sided
Two digital panels, back-to-back
Single with Static Back
One digital display panel with LED lighting on back for static poster
TransitVu™ doesn’t get rattled!
Stiffened Structural Design
— Resists the “piston effect” / pressure wave
Secured Electronics & Components
— Tolerates constant vibration
Fully Sealed IP66 Construction
IK10 Cover Glass
About the Piston Effect
Pressure changes created by trains entering / exiting the station every few minutes creates tremendous stress on the display, latches, gaskets, electronics, and cover glass. TransitVu™ is built to withstand these forces —as well as the contaminants it kicks up.
Standard Features
Standard features have been developed based on customer feedback, allowing for long-term operation with the lowest cost for deployment and operation.
Optical Design
Feature
Benefit
BrightVu® - 850 Nit Brightness
Maintains full brightness for 10 years, providing best ROI in the industry
BestVu® - Image Optimization
Provides superior viewing in all indoor lighting conditions
LifeVu® - Future-Proofing
Designed to provide over 10 years of usable life with no costly upgrades
PolrVu® - Polarized Sunglass Visibility*
Advertisements are always seen by all people in the area
* Touch interface and PolrVu® not available on 98" screens
Operational Enhancement
Feature
Benefit
DynamicVu® - LED Block Dimming
Provides true colors / tones and greatly reduces power consumption
GeoVu® - Brightness Control
Adjusts brightness based on seasonal solar patterns and current weather
AmpVu®, VoltVu®, WattVu® PowerVu® - Energy Monitoring
Prevents false breaker trips, improves uptime, power consumption data
QuietVu™ - Noise Reduction
Super-quiet design eliminates noise complaints
Mechanical Design
Feature
Benefit
CoolVu® - Thermal Management
Handles temperature fluctuations from -40° to +40° C, no direct sunlight
ToughVu® - Cover Glass
Impact resistant, 5.7mm thermally tempered glass
AReadyVu™ - Integration Ready
No on-site programming required, all software / IP configs at factory
Remote Management
Feature
Benefit
SmartVu® - Monitoring Entire Population
Cloud based asset management that “phones home” if problems arise
StatusVu® - Data & Diagnostics
Provides extensive self-monitoring of individual assets
AlertVu™ - Proactive Alerting System
Automatic alert e-mailed to customer of onsite problem, such as door open
SureVu® - Video Monitoring
Is your content running and on display? With SureVu® you can be sure
LockVu™ - Sealed Unit Confirmation
Ensures all doors are firmly latched and sealed
ShockVu® - Impact Detection
Allows remote detection of abnormal impacts or vandalism
RemoteVu® - Remote Recovery
Provides for remote monitoring and auto reboot as needed
HumidityVu® - Dew Point Detection System
Detection of potential internal condensation
SealVu® - Monitoring Internal Air Pressure
To ensure maintenance of IP66 sealing - No water/dust
PopVu® - Proof of Play System
Ability to remotely view Ads / Content currently playing on the display
Optional Features
Digital InfiniteTouch®
Cameras
*Touch interface and PolrVu® not available on 98″ screens
Display Sizes
39% larger screen area over a 55″
34% larger screen area over a 65″
32% larger screen area over a 75″
30% larger screen area over a 86″
Operating Parameters
Input Power
120-240VAC / 50-60 Hz standard
Min. Ambient Air Temperature
-40°C (-40°F)
Max. Ambient Air Temperature
40°C (104°F)
Luminance
850 nits
Standard Media Player
NUC with Intel® Core® i5 Processor, 16GB RAM, and 256GB SSD
Display Resolution
55” FHD (1080 x 1920), 65”-98” UHD (2160 x 3840)

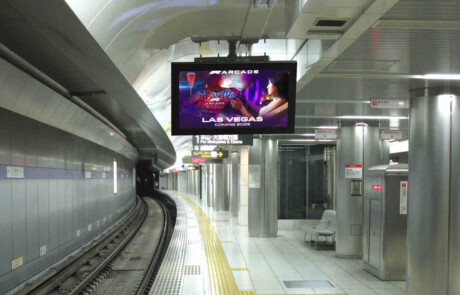

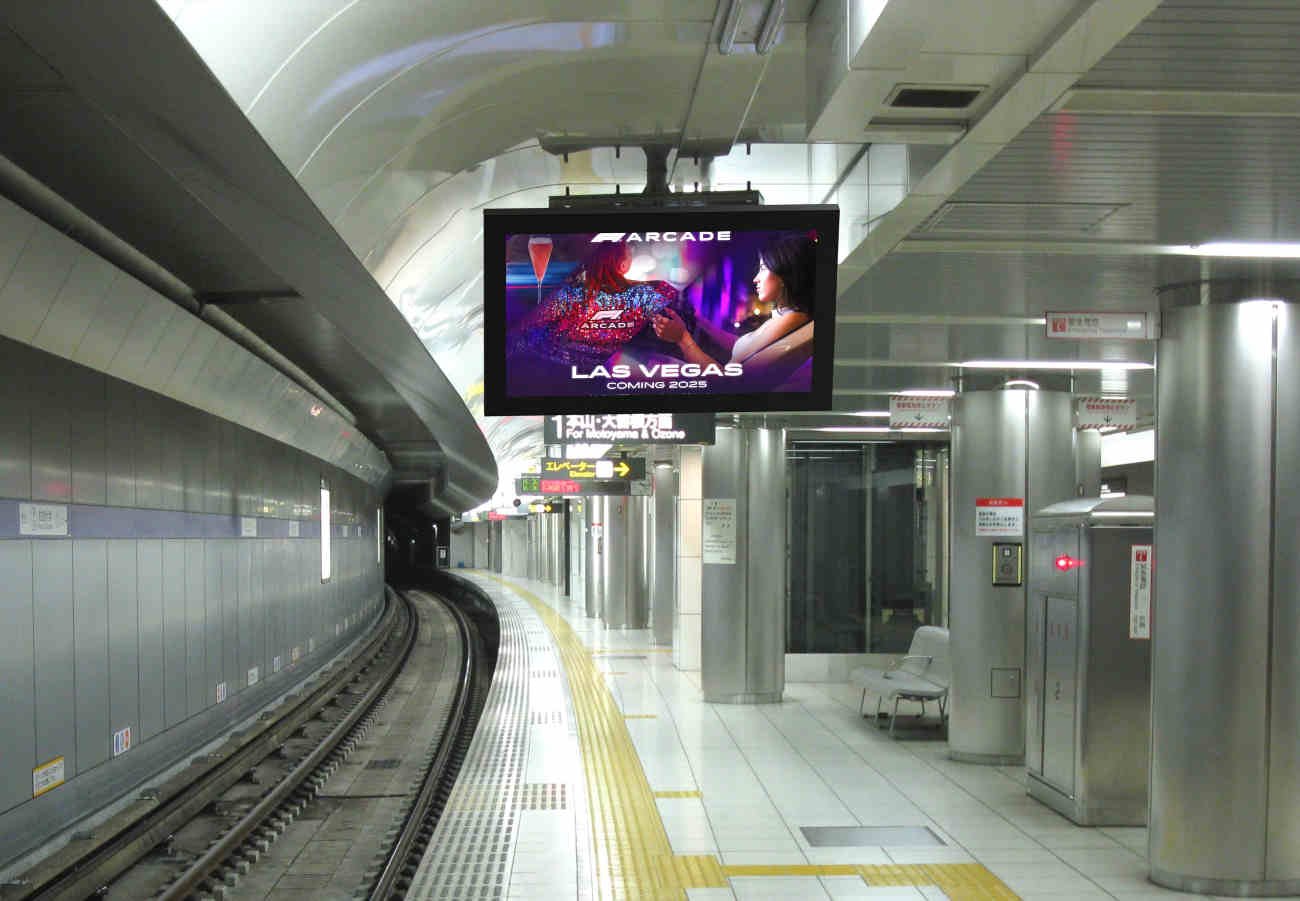

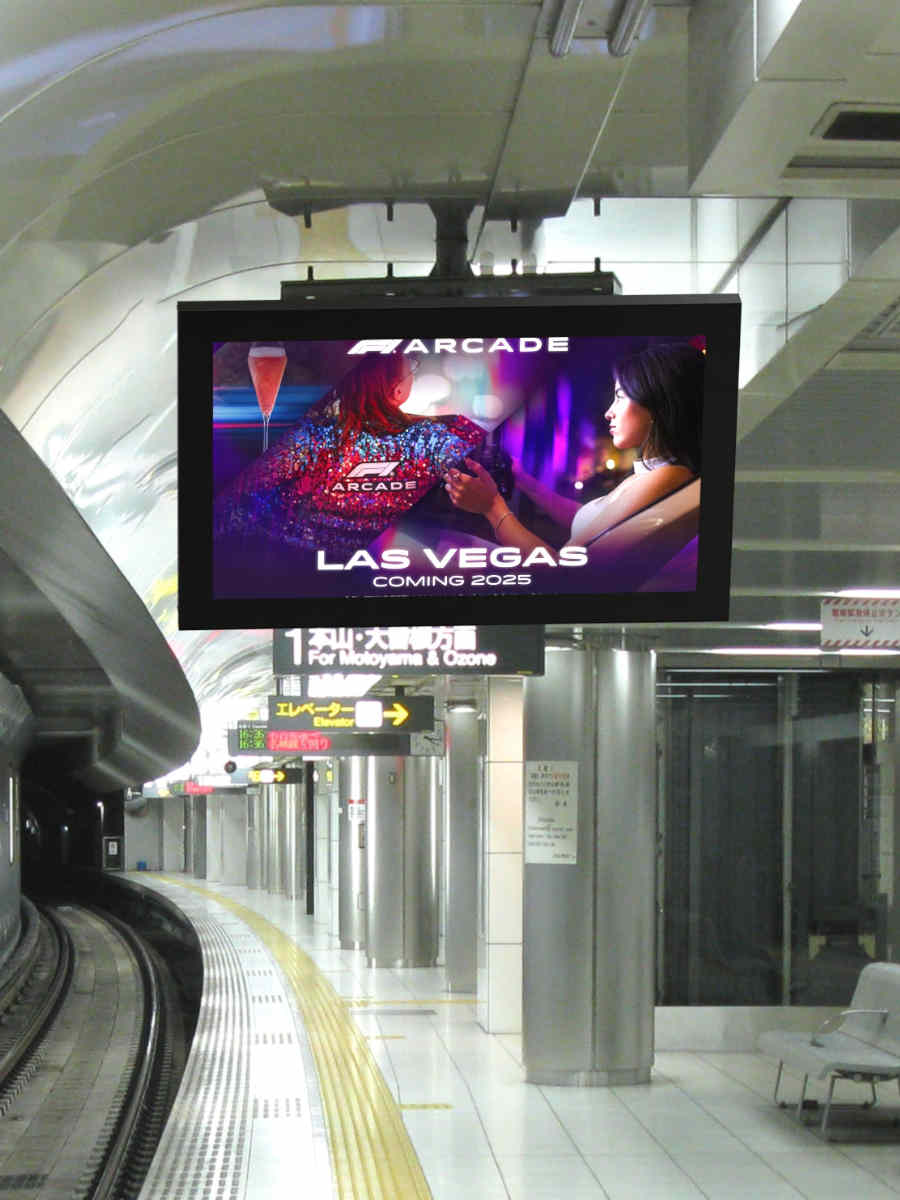

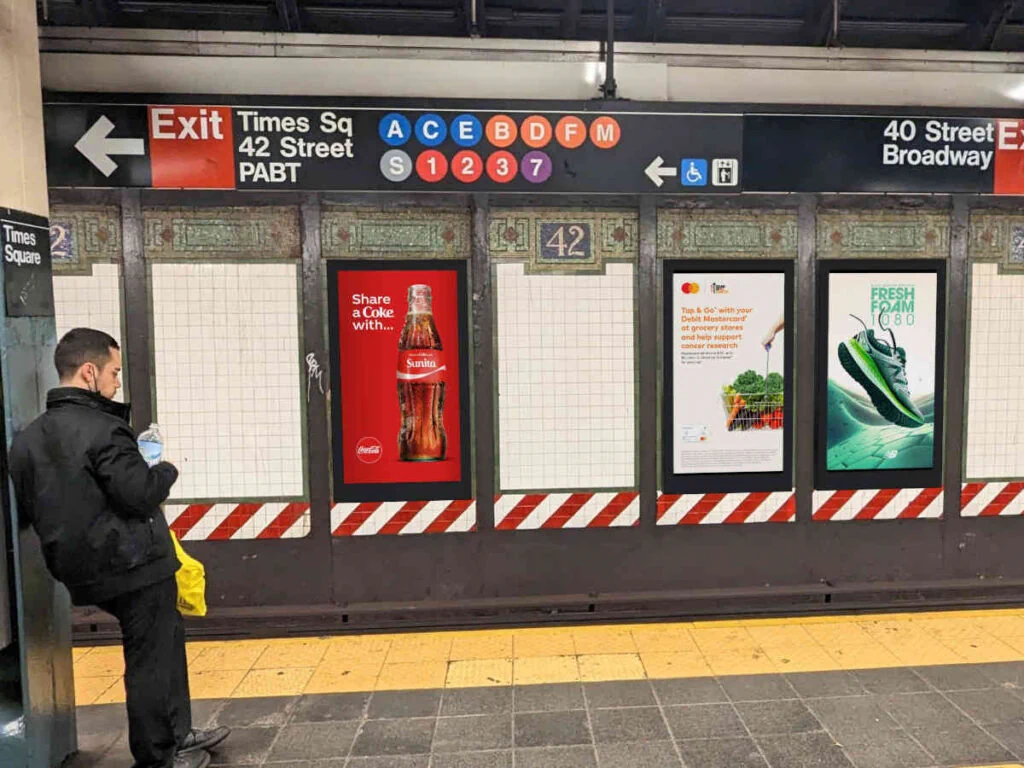

Mount from overhead, cross-track, walls, or make free standing:

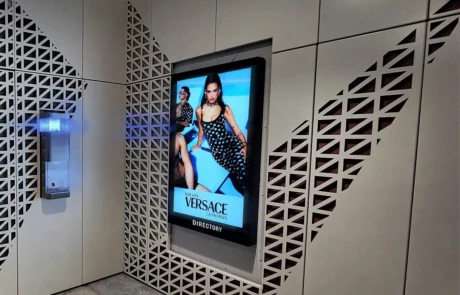

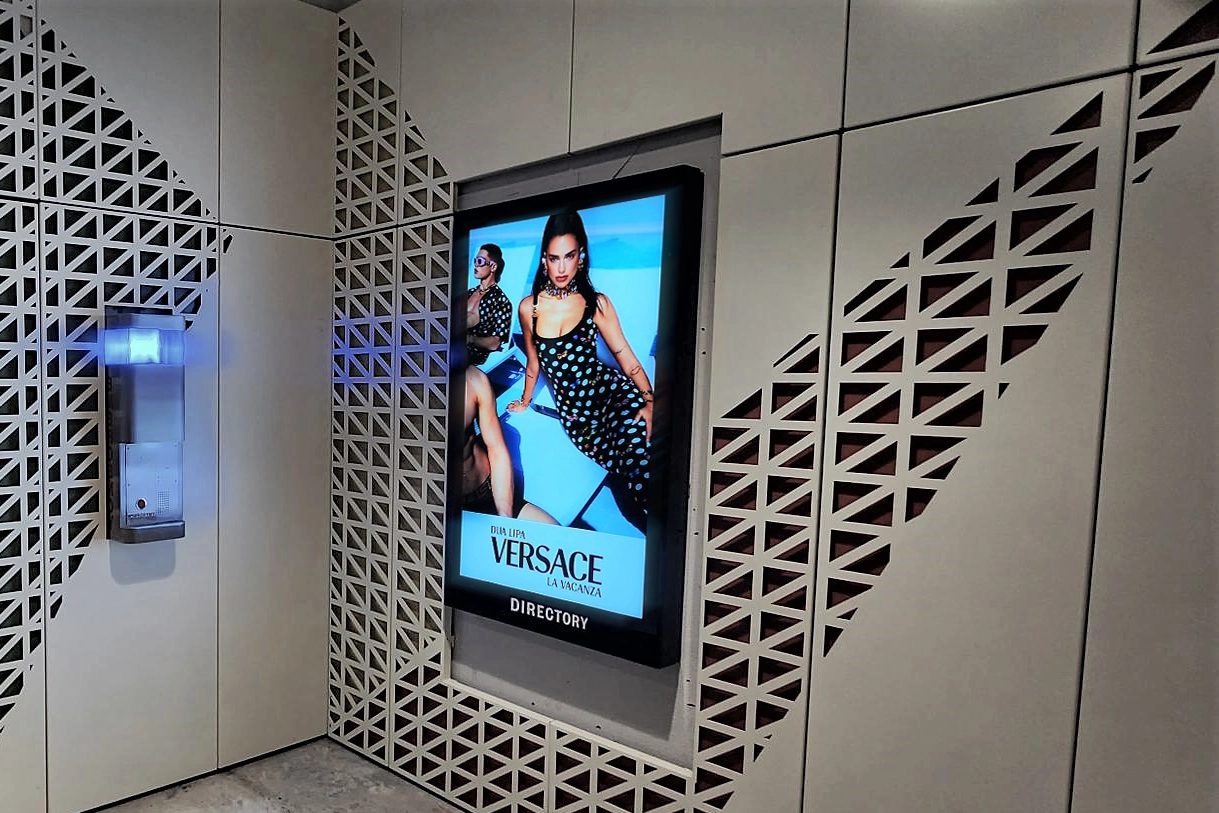

Universal Mount Displays (UMD)

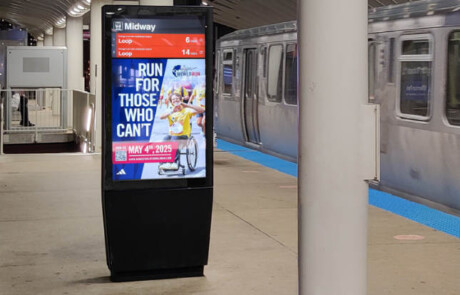

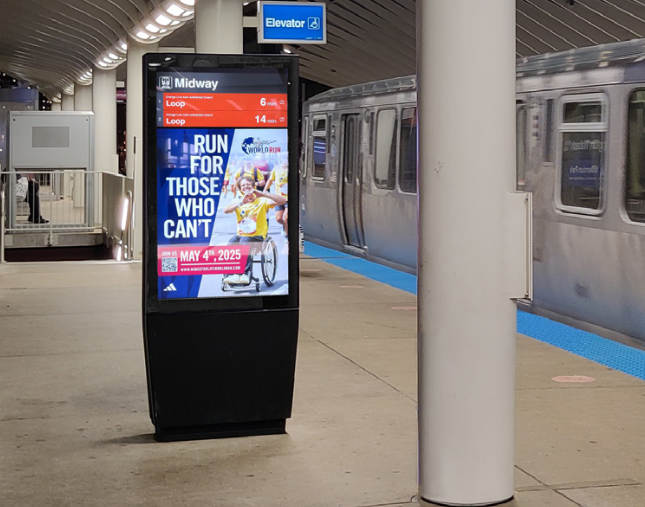

Free-standing Display (FSD)
